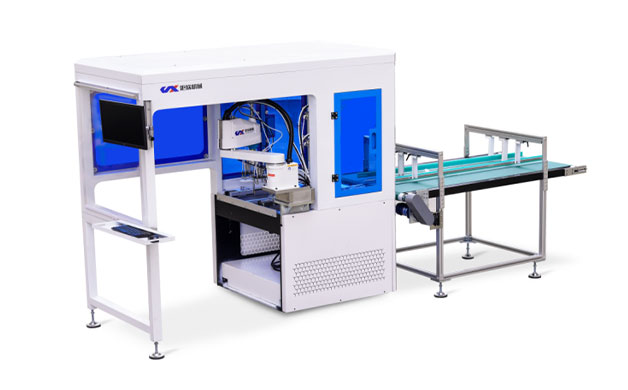

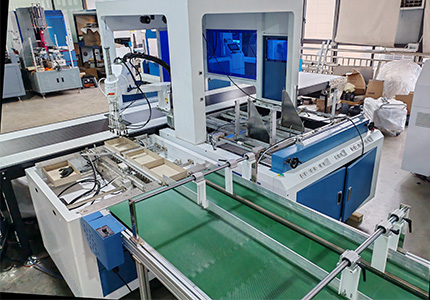

Automatic Visual Positioning Machine (Box)

JX-HS700

Watch Video

Automatic Rigid Box Visual Positioning Machine

Min size of double

80*50*12mm

Max size of double

420*200*120mm

Single Speed

26pcs/min

Double Speed

44pcs/min

Color

Inquiry Now

Download

For color customization needs , Contact Us !

Automatic Rigid Box Visual Positioning Machine

In the fields of industrial automation and precision manufacturing, automatic visual positioning technology can achieve micrometer level positioning accuracy and efficient part alignment and bonding, greatly improving production efficiency and product quality.

Parameter List

Model	JX-HS700
Max size of single	600450120mm
Min size of single	505012mm
Max size of double	420200120
Min size of double	805012mm
Speed	single≤26min,double≤22min
Accuracy	±0.1mm
pressure	20L/min 0.8Mpa
Power	15KW/AC380V
Weight	2000kg
Dimensions
Wooden crate size	230012501880mm(1)
	178014801280mm(2)
	190015001980mm(3)

Highlights

The difference from the previous model is that the HS700 meets the needs of users who only need to make sky and earth covers or have larger product box sizes, and requires a fully automatic sky and earth cover device to solve the current needs. Having high cost-effectiveness, it reduces equipment procurement costs for customers.

The automatic visual positioning machine measures items through scanning, avoiding potential secondary damage hazards caused by contact measurement and improving the reliability of the system.

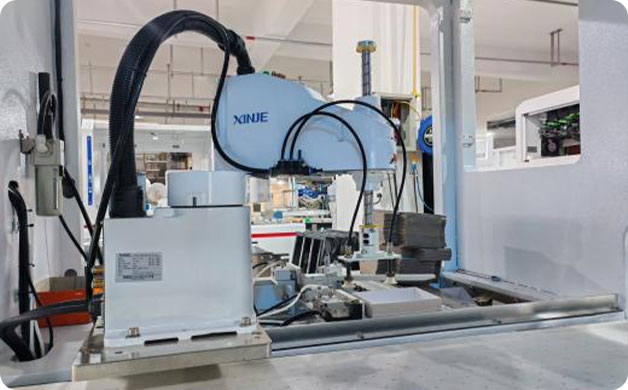

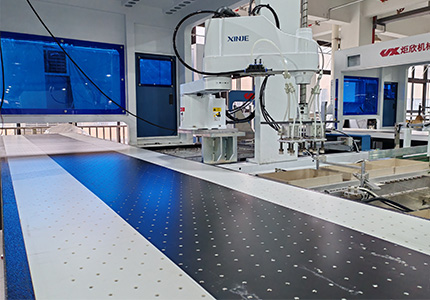

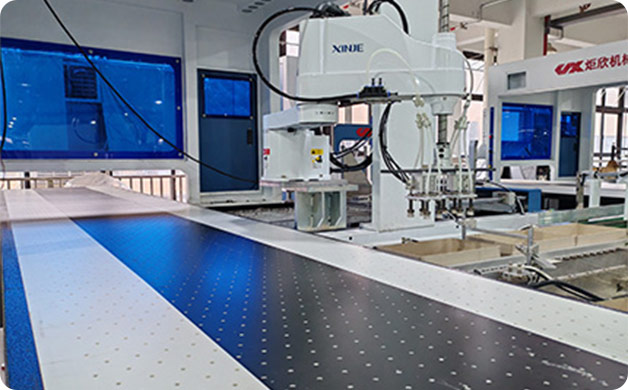

Mechanical arm

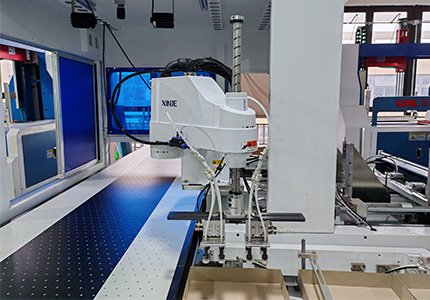

The robotic arm has strong flexibility and can adapt to various complex task requirements. The robotic arm adopts advanced servo motors and motion control systems, which can achieve high-speed and high-precision motion control, and quickly and accurately complete a series of actions such as grasping, handling, and stacking.

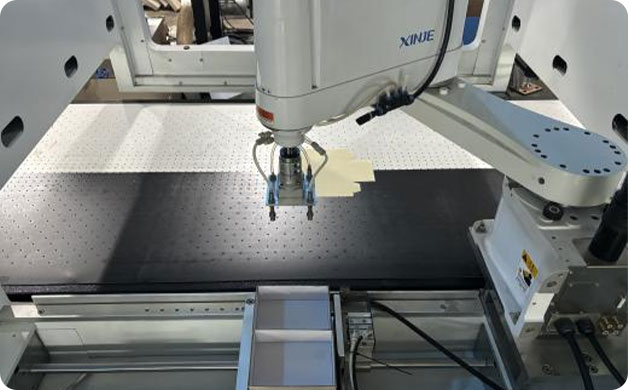

Secondly, the robotic arm is equipped with various sensors and advanced visual recognition technology, which can achieve precise perception and positioning, quickly identify items of different shapes, sizes, and colors, and automatically classify and stack them. The product adopts intelligent PLC touch screen control, and users can monitor and adjust the robot in real time through the intelligent control panel or remote control system, with simple and convenient operation

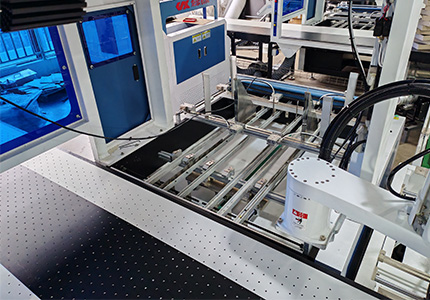

Mechanical arm

In addition, the safety of the robotic arm is high, equipped with various safety devices and sensors, which can achieve safe operation and reduce safety risks for workers. High degree of automation, able to integrate with various automation equipment and systems, realizing the components of automated production lines, improving production efficiency and reducing labor costs.

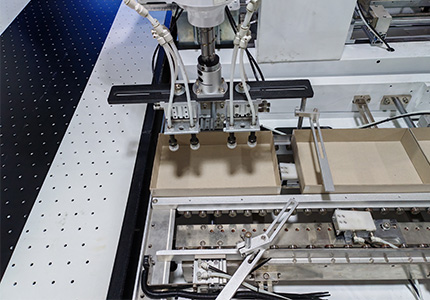

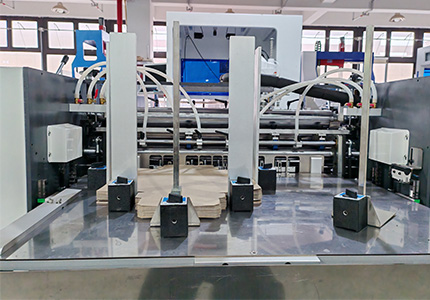

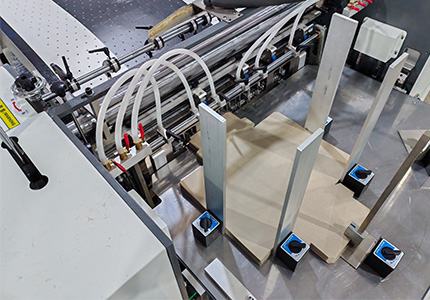

Positioning System (Box Silo Can be independently transplanted)

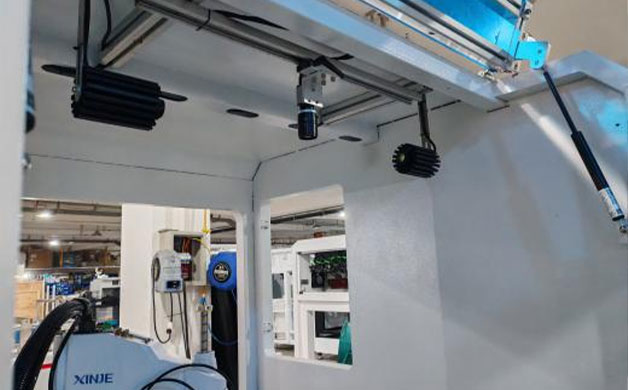

Industrial cameras can capture dozens to hundreds of images per second, much higher than ordinary cameras.

The shutter speed of industrial cameras is very fast, which can capture high-speed moving objects clearly.

Positioning System (Box Silo Can be independently transplanted)

Industrial cameras output raw data with a wide spectral range, suitable for high-quality image processing algorithms such as machine vision applications

Main Accessories

Robot body: XINJE (China)

Visual System: XINJE (China)

Industrial Camera: DAHUA(China)

Servo motor: XINJE (China)

Motion Control PLC: XINJE (China)

7-inch touch screen: XINJE (China)

Cylinder components: Air TAC (Taiwan)

Guide rail: Air TAC (Taiwan)

Screw rod: Egus (Germany)

Travel limit switch: Schneider (France)

Button switch: Schneider (France)

Plastic bearings: Egus (Germany)

Earing: Harbin (China)

Debugging Process

Connect the single-phase 220V power supply, connect the air source, and check if the four pointers of the recessed cylinder are working properly. Click the 'Reset' button to check if the device is functioning properly.

Switch to debugging mode, replace the mold, and adjust the machine position.

Log in to the manual page, click on "Mold opening servo" or "Mold opening assistance descent", level the bottom and middle of the upper mold, then switch to the "Settings page", long press "Upper mold" to set the position.

Log in to the manual page, click on "Spindle Servo Downward" to lower the spindle servo to the position of the impact angle cylinder, click on "Impact Angle Cylinder" to start the impact angle flat brush, adjust the bottom of the flat brush to a position 5-8mm higher than the bottom of the inner box, log in to the settings page, and long press "Impact Angle" to set the position.
