JX-CS800A

Fully Automatic Rigid Box Production Line(With Single Box Forming Station)

Name: Fully Automatic Rigid Box Production Line(With Single Box Forming Station)
Brand: Juxin
SKU: 00036
Rating: 4.9 (68 reviews)

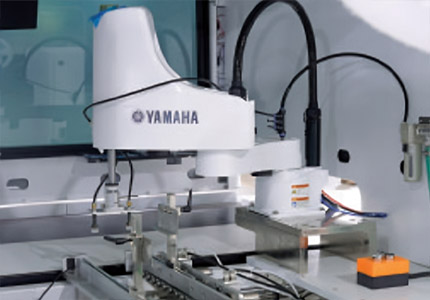

Automatic feeder with end suction system makes paper feeding more accurate, to avoid paper stuck in the machine. Intelligent visual technology with YAMAHA robotic arm for better performance. Mold-Free corner pasting machine improves efficiency and saves mold-changing costs. Thirteen servo-forming machines to ensure box made in a perfect condition.

Maximum Box Size

450×450×120mm

Minimum Box Size

85×85×15mm

Side-fold width

10-60 mm

Gray board size

115*115mm-700*700mm

Inquiry Now

Download

For production solutions, Contact Us！

Product Description
Parameter List
Highlights
Main Accessories
Debugging Process

Product Description

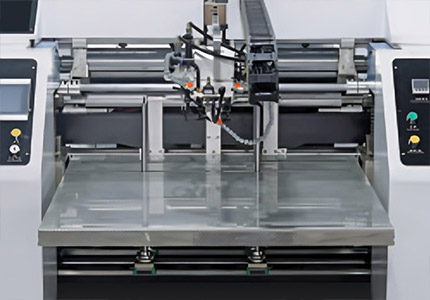

1. It adopts high speed automatic paper feeding system, which is controlled pneumatically, and its structures simple and reasonable.

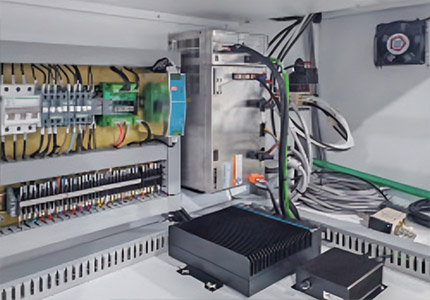

2. It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMl, which helps the operator easily remove them.

3. New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding. And the copper scraper is more durable.

4. Paper feeding and positioning system adopt imported high precise photoelectric control device to make the paper and cardboard location more accurate.

Parameter List

Model	JX-CS800A
Paper size	L140-980mm, W100-760
Max. size of single fixed ceiling cover	500×500×120mm
Folding depth of noodle paper	10-100mm
Gray board size	L640-W600
Stacking height of gray boards	900mm
Speed	Single order <26pcs/min
Total power of equipment	22KW/AC380V
Paper thickness	80-200gsm
Face paper stacking height	350mm
Min.size of single fixed ceiling cover	60×80×12mm
Fold ear size	10-60mm
Thickness of gray board	1-3mm
Accuracy	±0.1mm
Air pressure	20L/min 0.8Mpa
Mechanical weight	5600kg（About）
