Fully automatic grooving machine

Maximum Linear Speed

195 pcs/min

Slotting angle range

90-140°

Cardboard thickness range

0.2mm-4mm

Color

Inquiry Now

Download

For color customization needs , Contact Us !

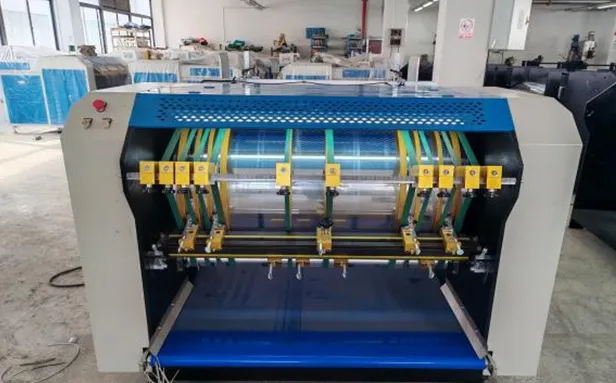

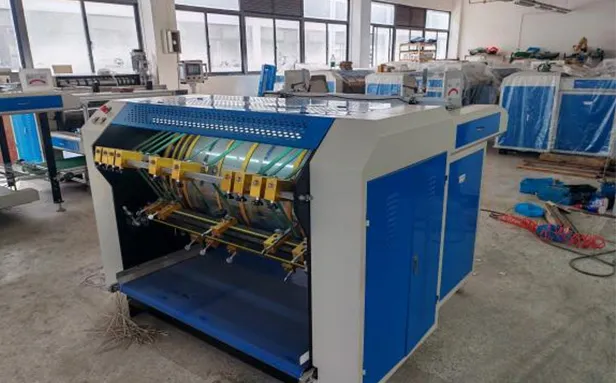

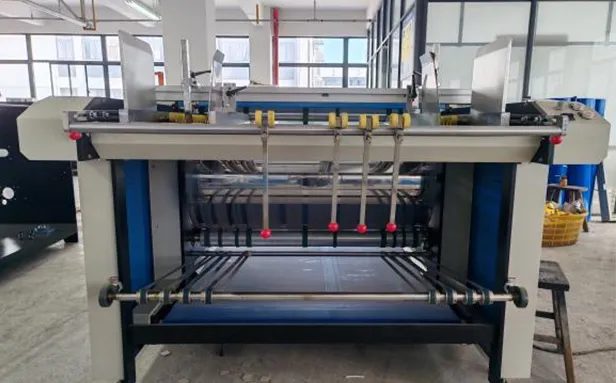

Fully automatic grooving machine

It is 2-3 times the speed of the existing V groove machine, easy to operate, only one person operation can be completed, thus improving the production efficiency.V groove effect is good, solved the ordinary mechanical V groove with the burr, can not V groove the sky and the earth cover of the difficult problem.

Parameter List

Model	JX-1000	JX-1300
Automatic paper feed horizontal width	100-950mm	100-1250mm
Auto Feed Vertical Length	5-500mm	95-500mm
Linear accuracy tolerance	±0.1mm	±0.1mm
Maximum Linear Speed	195 pcs/min	195 pcs/min
Slotting angle range	90-140°	90-140°
Cardboard thickness range	0.2mm-4mm	0.2mm-4mm
Simultaneous slotting number	9	9
Machine power	2.2kw	2.2kw
Machine size	210016001500mm	210019001500mm
Weight	1200kg	1300kg

Highlights

Adopting a new type of cardboard conveying mechanism, the entire flat surface of the cardboard to be slotted is wrapped around the(60 cm diameter) roller surface, to ensure accurate slotting alignment, no deviation and straightness of grooving. It is characterized by high precision, high speed and durable tool.

Slotting machine processing objects: gift boxes, wine boxes, packaging boxes, shoe boxes, moon cake boxes, folder boxes, etc..

High efficiency: 2-3 times the speed of the existing V groove machine, easy to operate, only one person operation can be completed, thus improving the production efficiency.

Advanced: V groove effect is good, solved the ordinary mechanical V groove with the burr, can not V groove heaven and earth cover of the difficult problem.

Environmental protection: production of various products, no noise, no dust, V groove waste for a whole, recyclable.

Energy saving: the power of the usual V groove machine is about 13KW, the machine power is only 1.5KW, reducing the production cost.

Convenient: the cardboard slotting machine can be placed anywhere in the workshop (except for special places and dangerous places), covering a small area.
