Fully automatic integrated side/flat dual-use assembly machine

Maximum shell size

1050*500mm

Minimum shell size

120*90mm

Production speed

0-25pcs/min

The fully automatic integrated side/flat dual-use assembly machine is designed for assembling and molding high-end packaging, including, phone boxes, health care boxes, wine boxes, and various gift boxes.

Inquiry Now

Download

For color customization needs , Contact Us !

Fully automatic integrated side/flat dual-use assembly machine

Assembling machine, it is a fully automatic book-type box, heaven and earth cover box set one-time molding and assembling machine, which is mainly used for assembling and molding of high-grade cigarette box, cell phone box, health care box, wine box, moon cake box, ring box and all kinds of gift boxes and other products.

Parameter List

Model	GR-950ZA	GR-1020ZA
Maximum shell size	950*500mm	1050*500mm
Minimum shell size	120*90mm	120*100mm
Positioning accuracy	±0.4mm	±0.4mm
Number of nozzles	1	1
Maximum inner box size	500500180mm	500500180mm
Maximum inner box size	11011010mm	11011010mm
Maximum gluing area	580*500mm	580*500mm
Minimum gluing area	80*80mm	80*80mm
Production speed	0-25pcs/min	0-25pcs/min
Pneumatic pressure	0.7mps	0.7mps
Power	8kw/380v	8kw/380v
Machine size	440021001600mm	480021001600mm
Weight	2000kg	2000kg

Highlights

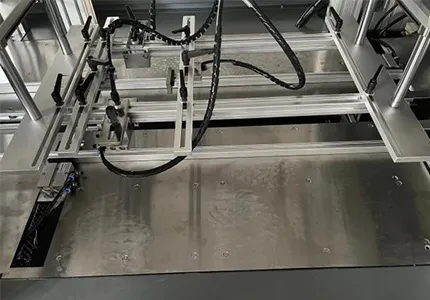

1. Original R & D hovering positioning go crust mode device thoroughly zero scratch to prevent matte film, tactile film, gold and silver card face paper scratch, faster (has applied for national patent technology certification).

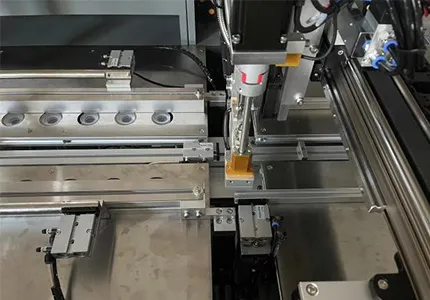

2. Adopting the latest computer control system, can arbitrarily spray strips, dots, fog-like graphics.

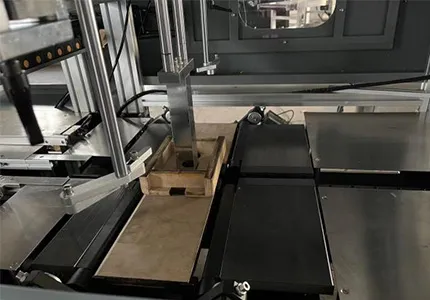

3. Adopting automatic four-corner holding clip and suction box dual-mode device to solve the bottomless inner box, the box around the box, the bottom of the inner box, such as assembly molding, without making molds (has applied for the national patent technology certification).

4. For the current domestic can't solve the production of book-type box side and the sky and the earth cover box set one-time automatic assembly molding and one-time automatic pressure bubble and so on, our company exclusive research and development of single-side, double-side one-time automatic assembly molding stand-up system and one-time automatic pressure bubble without modularization replacement (has applied for the National Patent and Technology Certification), to solve the artificial pressure box caused by the side of the box box of the book-type box box pressure box is not tight, resulting in cracks or seams, and save labor. And save labor, truly one-time assembly molding and solved the artificial pressure bubble heaven and earth cover set box is not tight, resulting in cracking or cracking and other issues.

5. machine all use imported electrical imported servo linkage system, fast positioning accurate, one-time molding, molding error +0.4mm, the highest assembly molding 18-28 per minute, no scrap production, etc., than the market than the semi-automatic dual-nozzle assembly machine to save 4 people, than the full-automatic assembly machine to save 1 person, but also the country's fastest and most advanced one-time molding assembly equipment.

6. The machine is simple to use and easy to operate, easy to understand and learn, stable performance, replace the product debugging fast, by the domestic and foreign new and old users consistent trust.
