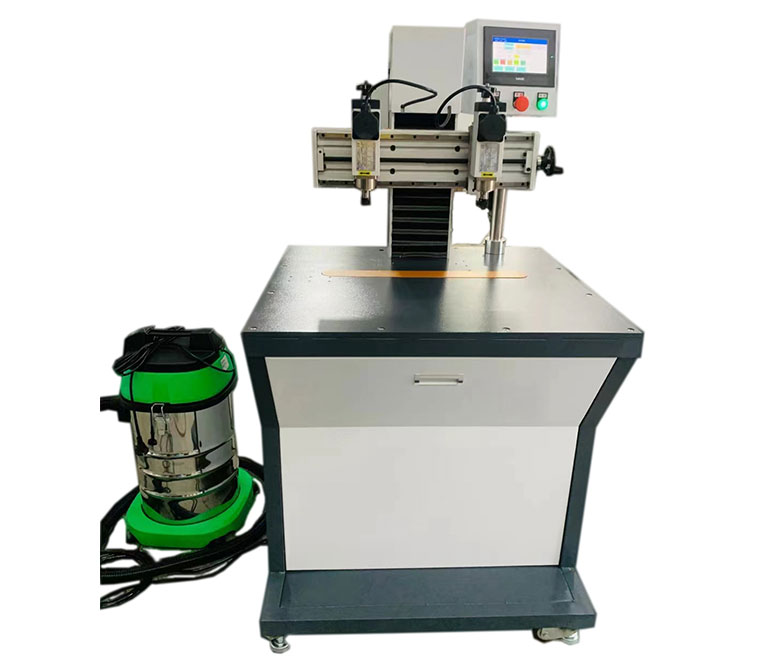

JX-JK600

Semi Automatic Board Drill Machine

Semi automatic board drill machine is mainly for processing and drilling cardboard before pastingmagnets, such as for Up and Bottom Cover Assembly box, book box, gift box,and hardcover box.

Cardboard maximumsize

900*700mm

Positioning accuracy

±1-2mm

Speed

0-30pcs/min

For production solutions, Contact Us!
Product Description

This machine PLC,sstepper motortouch screen and frequency converter. It has simple operation, convenient maintenance, accurate drillingand high automation, Long life, durable, light weight and easy to move, Particularly suitable for a varietof high precision drilling. Convenient and fast, accurate alignment, drilling size and depth can be adjusted.

Parameter List
Cardboard maximumsize 900*700mm (Auxiliary workbench is required)
Positioning accuracy ±1-2mm
Diameter Drilling Unit Diameter φ8-φ21
Product speed 0-30pcs/min
Card board thickness 1-5mm
Left and right Hole spacng Min70mm/Max500mm
Up and down Hole spacng Min0mm/Max130mm
Pressure 0.6-0.8Mpa
Supply voltage 220V
Rated frequency 50Hz-60Hz
Constant power 3kw
Machine dimension(mm) L800*W750*H1450mm
Weight 150kg
Precision Automation for Superior Rigid Boxes
Ready to elevate your packaging production? Submit your inquiry to get a custom solution and expert support.
  • Wide Machine Compatibility
  • Premium Brand Components
  • Micron-Level Precision Vision
  • 15+ Years Expertise
